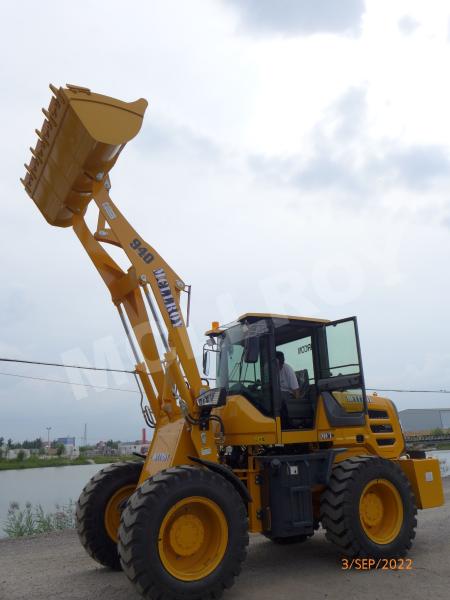

Bucket Capacities 1.2m³ Compact Wheel Loader, Yun Nei 4102 Supercharged Front
1. Products Description
In general, for construction machinery, the four most important factors are: price, quality, operation, and after-sales.
The amount of shovel material and the stability of the loader depend on the cooperation of the loader frame.
The flexibility and light operation mainly depends on the hydraulic system of the loader.
The low failure rate depends on quality as well as the after-sales service.
MCLLROY wheel Loaders are widely used in the construction, municipal engineering, urban and rural gardens, lime, sand, cement factories, mines and other enterprises and institutions and departments. It is particularity applied to the narrow space for the loading operation of stone,sand and other construction materials.
2. Specification
| MODEL | MCL 940 |
| ENGINE | Engine Model | Yun Nei 4102 Supercharged |
| RPM | 2400 |
| Rated Power | 76 kW |
| Emissions | EU Stage II |
| WEIGHTS | Operating Weight | 6100 kg |
| Rated Load | 2800 kg |
| BUCKETS | Bucket Capacities | 1.2 m³ |
| TRANSMISSION | Max. Travel Speed | 28 km/h |
| Gear Box | CVT
280 torque converter |
| Axle | Large hub |
| Axle Base | 2560 mm |
| Brake | Air Brake |
| HYDRAULIC SYSTEM | Hydraulic Cycle time - lift | ≤ 6 s |
| DIMENSIONS(APPROXIMATE) | Min. Ground Clearance | 400 mm |
| Wheel Base | 1640 mm |
| Reach at Max.Dump Height | 3500 mm |
| Dump Reach | ≤ 650 mm |
| Overall Length - With Bucket | 6240 mm |
| Overall Width | 2040 mm |
| Overall Height | 2830 mm |
| OPERATING SPECIFICATIONS | Tyre Size | 1670-24 |
| Breakout Force | 52 KN |
| Joystick | Machanical |
| Min. turning radius | ≤ 6200 mm |
| STANDARD EQUIPMENT | Hour meter | Yes |
| Tool Box | Yes |
| Dual Hight&Low Speed Handle | Yes |
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Engine:Domestic famous engines ,green/turbocharged/inter-cooled engine.
2) Transmission:Wet multi-plate clutch automatic transmission ,torque converter ,stable performance ,famous brand in China.
3) Axle: Heavy-duty axle ,planetary reduction ,solid and durable ,with the corresponding tires ,for the loader to provide.
4) Hydraulic system:After the rise of force ,high discharge automatic flat working device,short operation time, improve the work efficiency.
4.Certification
Product quality determines customer satisfaction thus the life span of a company.
MCLLROY not only acknowledged by the ISO9001:2000 international quality control system
and ISO 9001:2015 quality management system certification,but acquired the CE certificate.
MCLLROY CE certificate is for wheel loader, backhoe loader,excavator ,mixer truck .etc.
